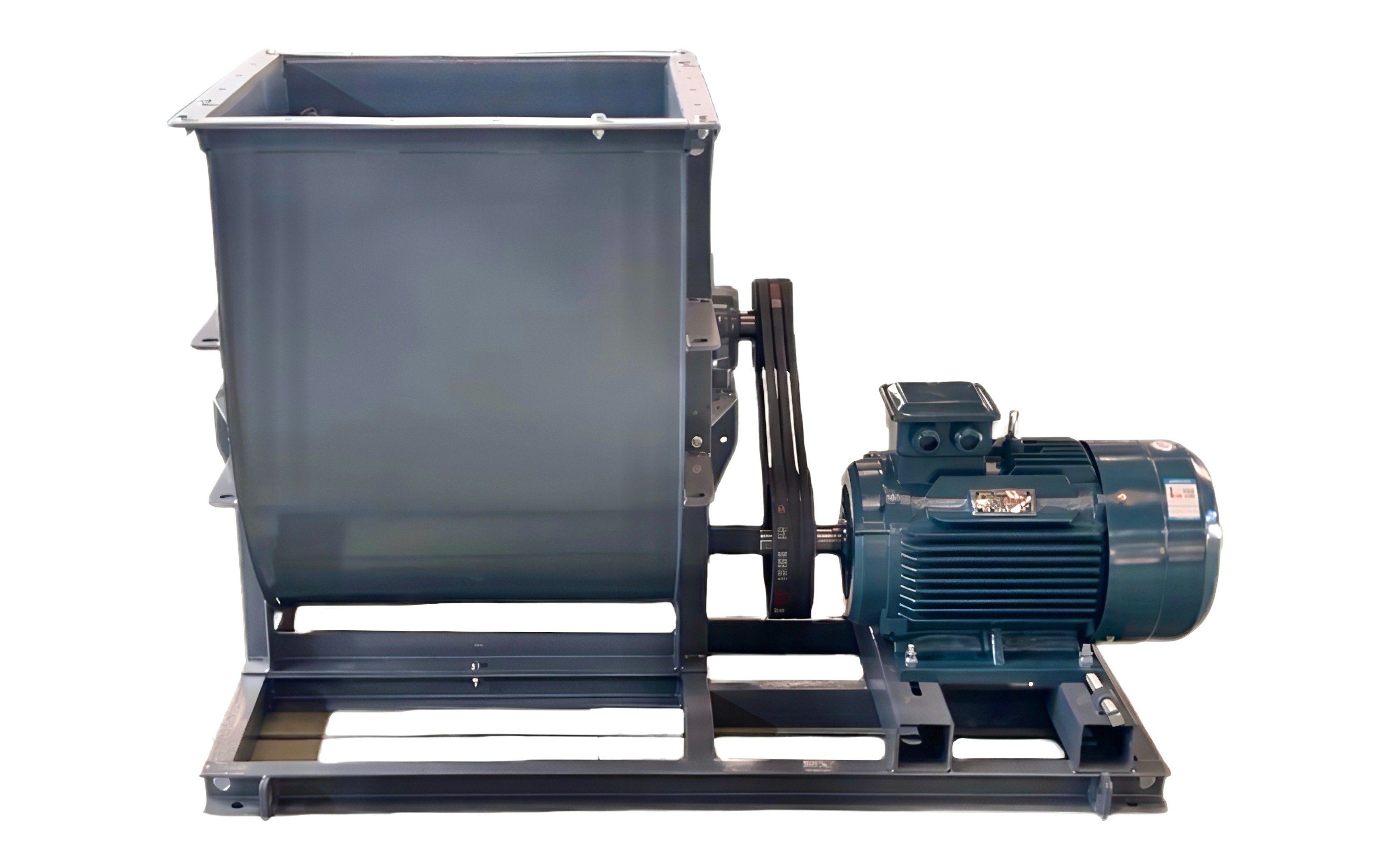

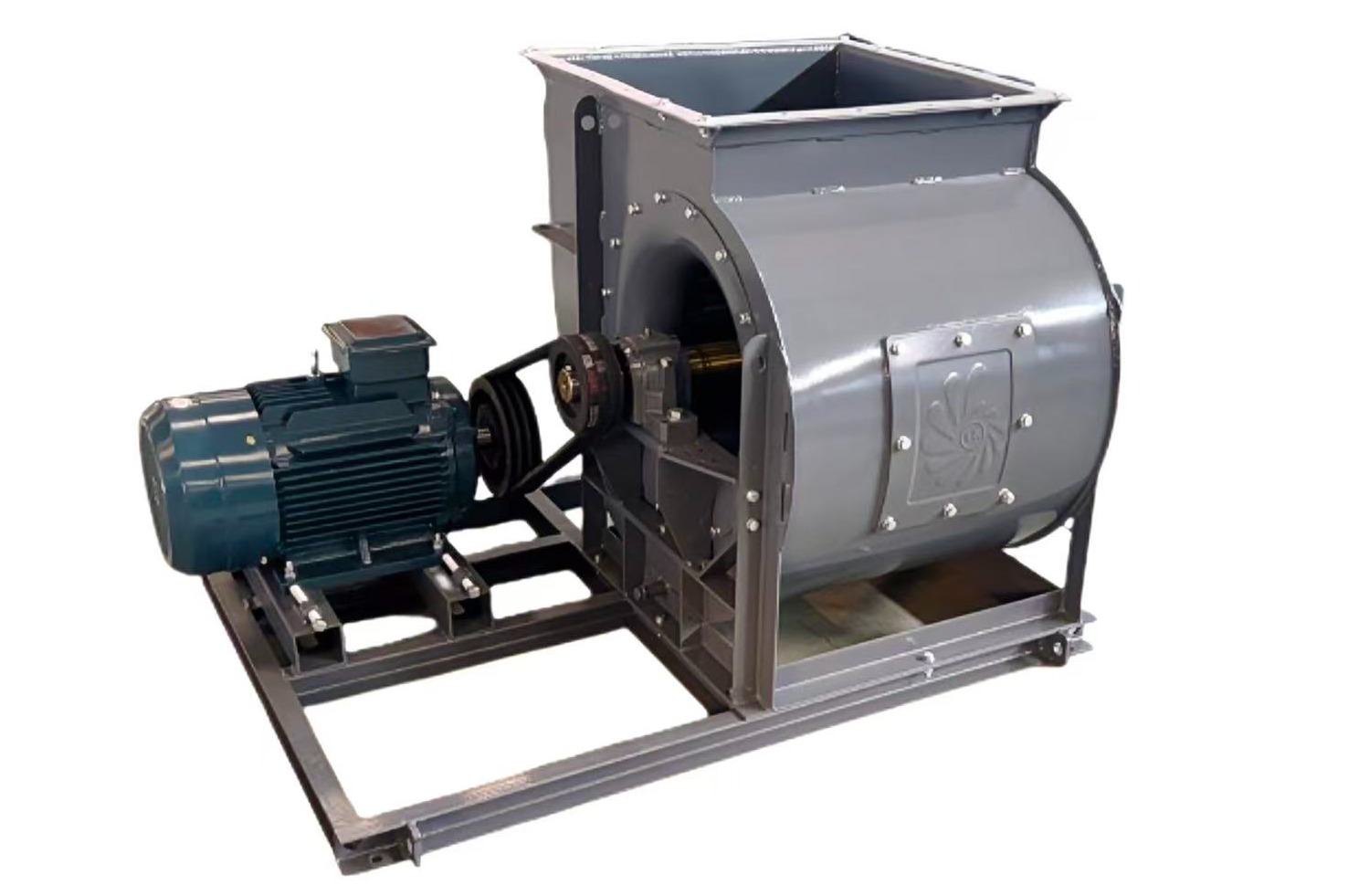

Wankun fan belt drive system – infusing high-efficiency drive capabilities into the ZHF500 type axial air conditioning fan

In the ZHF500 type axial air conditioning fan of Wan Kun Fans, the belt drive system is the core power hub that ensures the efficient and stable operation of the fan. With its precise design and high-quality components, it plays a crucial role in enabling the fan to maintain strong performance under complex operating conditions.

I. Core Configuration: Precision selection of materials ensures reliable transmission performance.

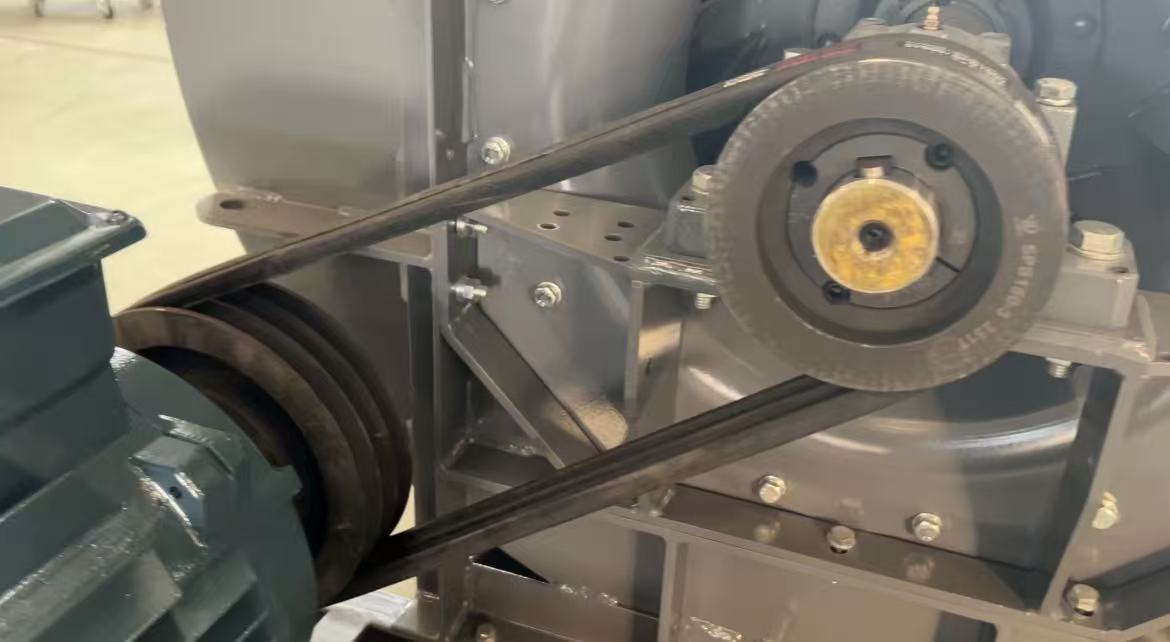

· Belt wheel and belt: The belt wheel by Wei Ou Te is paired with a Samsung belt, with a safety factor of 1.4 or higher. The belt wheel is precision-machined to ensure a perfect fit between the groove and the belt, while the Samsung belt boasts excellent resistance to stretching and wear, ensuring stable operation even under prolonged high-speed conditions. This setup significantly reduces the risk of slipping and maintains the efficiency of power transmission.
· Bearing support: Equipped with NSK self-aligning roller bearings, which have a significantly higher load-bearing capacity than most ball bearings available on the market. Self-aligning roller bearings can automatically adapt to minor deviations in the shaft, ensuring stable support even at high speeds. The design of the fully enclosed bearing housing further prevents any potential leakage of lubricant, providing a long-lasting and clean operating environment for the belt-driven system.

II. Design Advantages: Significant Improvement in Performance from Transmission to Overall Machine
1. Dual assurance of both transmission efficiency and noise reduction
The flexible characteristics of the belt drive system can effectively cushion the dynamic impact between the motor and the fan impeller, and the impeller has undergone a stress relief annealing process (Q355B high-strength steel plate, welded and then precisely processed in a heat treatment furnace) to completely eliminate stress noise during high-speed operation. Additionally, the smooth transmission between the belt and the pulley further reduces the overall noise of the system, creating a quiet working environment for the air conditioning system.
2. Precise coordination between dynamic balance and clearance control
Before and after spraying, the impeller undergoes a national standard G2.5 level dynamic balance test to ensure that the overall machine's vibration does not exceed 3.0mm/s, allowing the belt drive system to operate consistently in a stable condition. The precise gap of 4-6mm between the inlet of the fan and the inlet of the impeller reduces turbulent airflow, while also enabling the power output from the belt drive system to be more accurately converted into airflow power, significantly enhancing the overall efficiency of the machine.

3. Axial design tailored for compact structures
Given the compact structure of the air conditioning box, the installation method of the motor shaft and the fan shaft is used. The belt drive system efficiently transmits power within the limited space, meeting both the layout requirements of the air conditioning box and ensuring robust power output from the fan. This is the preferred transmission solution for compact spaces.

III. Application Value: Reliable Power Source for Various Scenarios
Whether it is the central air conditioning system of commercial buildings or the ventilation engineering of industrial sites, the belt drive system of Wan Kun Fan can empower the ZHF500 type axial air conditioning fan with its advantages of efficient transmission, silent operation, and ease of maintenance: while ensuring large-volume airflow, it reduces energy consumption and maintenance costs, making it a reliable partner for ventilation needs in various fields.

With its meticulous attention to the drive system, Wan Kun Fan has pushed the performance boundaries of the ZHF500 type axial air conditioning fan to new heights. This belt drive system serves not only as a bridge for power transmission but also as the core guarantee for the fan's efficiency, reliability, and silent operation. It ensures the delivery of high-quality airflow to every space that requires ventilation.
